ultrasonic testing

Authenticate your
Gold and Silver Bullion

Detect fraud and prevent loss from counterfeit gold and silver

tungsten and base metal inserts

Bullion fraud is a global problem

Tungsten is the same density as gold.  Simple combinations of low cost metals, usually lead / tin, can be alloyed to match the density of silver.

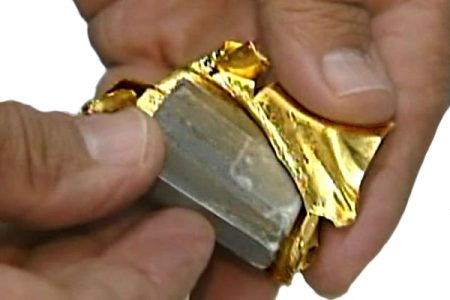

10oz tungsten bar encased
in a gold shell

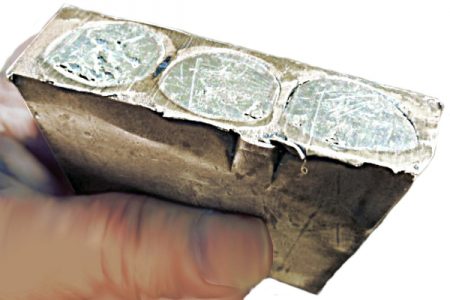

Silver bullion cored and
filled with lead alloy

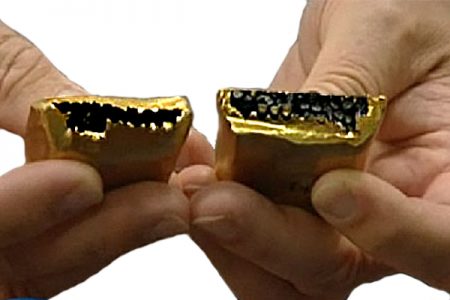

Hollowed cast bars packed
with tungsten rods

Heated "Engelhard" bar
reveals lead and tin

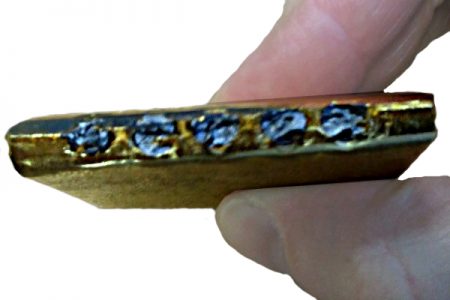

Genuine Metalor kilobar
with drilled inserts

Silver plated copies flood
online market places

Ultrasonic verification is the solution

The only conclusive non-destructive test to detect replica counterfeit bullion is by verification of ultrasonic properties. To safeguard precious metals investments, purchase fine bars and test them with ultrasound.

GT-Ultra

$420

Free Shipping



ultrasonic testing for gold and silver bullion and bars

Click Buy Now to be directed to Paypal.

Pay securely by credit or debit card.

No PayPal account required.

testyourgold.com does not collect financial information from customers.

Payment with credit and debit cards through PayPal
GT-Ultra test kit for gold and silver bullion

PRODUCT

Instrument

Ultrasonic Meter
5MHz 8mm Probe
Glycerol Coupling Gel
Instruction Manual
Carrying Case

  • Convenient: portable and discrete
  • Non-destructive: tests externally
  • Simple: fast and easy to operate
  • Affordable: low-cost protection

TESTING

Application

  • 1oz - 100oz cast gold bars
  • 1oz - 100oz minted gold bars
  • 5oz - 1kg cast silver bars
  • 5oz - 100oz minted silver bars
  • 5oz - 100oz minted platinum bars
Not recommended for coins and jewellery


Coins

Ultrasonic testing is not recommended for coins. Heavily embossed surfaces can make coupling problematic and results may be inconsistent

Jewellery and Scrap

In most cases ultrasound can not be used to determine if jewellery and scrap is solid or plated. A touchstone and acid is more suitable.

Karat and Purity Analysis

Ultrasound not does provide assays for metal purity and alloy composition. It is used to test the inner consistency of bars and bullion.

non-destructive ultrasonic testing

How it Works

Ultrasonic testing measures the velocity of sound in a solid and the distance it travels. Sound velocity is dependent on the elasticity and density of metal. Differences of those properties between bullion metals, and the low cost metals used to counterfeit them, guarantees authentication.

The distance ultrasonic pulses travel through gold and silver bars is compared with the physical width of the bar.

For example: A PAMP Suisse 10oz gold bar has an actual thickness of 8.3mm. If that bar was comprised of tungsten instead of gold, then the ultrasonic thickness would be 5.2mm. The difference between the real thickness and the ultrasonic thickness, is the proportion that the sound velocity for tungsten (5170 m/s) is faster than the sound velocity for gold (3240 m/s). If the actual dimensions of the bullion being tested are not known by mint certificates then a ruler, vernier caliper, or micrometer can be used. Any ultrasonic measurement that varies more than 5% from the known thickness warrants further investigation.

Additionally,  if bars contain inserts, ultrasonic pulses emitted from the probe will reflect back at the metal interfaces.  Results will be inconsistent and differ significantly from physical thickness to indicate potential fraud.

View these short videos for more information.

testing genuine gold bullion

testing a fake silver bar

customer queries

FAQ

You don’t need a PayPal account to purchase through PayPal. Most credit and debit cards are accepted at checkout. PayPal’s trusted consumer protection applies to purchases from testyourgold.com.

For customer security, no financial information is collected on the testyourgold.com website.  You may make contact and request a bank transfer if preferred.

The device should arrive within 10 business days to most parts of the world. You will be sent a tracking number. If tracking shows the package has arrived but you have not received the item, check your local post office. Our couriers leave parcels at the nearest post office if the receiver is not home at the time of delivery.

The package for shipping is free of branding. On customs documents the unit is described as metal test gauge.

Due to freight restrictions the device is shipped without batteries.  It requires 4 AA cells.

Coupling gel is included in the kit. Replacement ultrasound gel can be bought from pharmacists. Hand sanitising lotion also works well, and can be found in supermarkets.

All common gold, silver and platinum bullion and bars with a flat surface and testing thickness greater than 1.5mm can be tested.  Note that some cast (poured) silver bars thicker than 25mm can have strong attenuation properties which can make readings difficult.  It is usually possible to test 100oz cast silver bars, however 1kg is the recommended size for investors.

Enquire for testing very large bars.

Sections to be tested must have at least 8mm diameter at the surface without heavy embossing or stamping. This is to ensure a reliable coupling for the probe.

1oz – 100oz cast gold bars
1oz – 100oz minted gold bars
5oz – 1kg cast silver bars
5oz – 100oz minted silver bars
5oz – 100oz minted platinum bars

Ultrasound testing will not working reliably on coins, jewellery and scrap.

No. Ultrasonic pulses are adversely affected by plastic packaging or cases. The sound waves are reflected at the interface between the plastic and metal and returned to the probe which will give a nonsense reading.

Replacement Warranty for Defective Product

Gauge: 1 year

Probe: 90 days

All warranty claims for any fault in any components incurred under normal use and service must be immediately reported by email to info@testyourgold.com or by the contact form within the warranty periods.

If requested you must send to testyourgold.com proof of purchase and a written description of the fault (including image samples and any other relevant material requested); and subject to the applicable consumer laws in your jurisdiction, you may be required to pay for all packing, freight and insurance costs for transit of the product to be returned.

If the warranty claim is accepted testyourgold.com will, subject to the applicable consumer laws in your jurisdiction, at its cost repair or replace any faulty parts or rectify any faulty workmanship; and return the product to you.

The warranty does not apply where damage is caused outside of reasonable use and care, including without limitation:

(a) normal wear and tear;
(b) abuse, mishandling, accident or failure to follow operating instructions;
(c) leaking batteries;
(d) exposure to liquid or infiltration of foreign particles;
(e) servicing or modification of the product other than by testyourgold.com.

Purchase and Returns  Policy

Received defective or damaged item; received item with missing part(s); item is lost during delivery.

If you are dissatisfied with your purchase for reasons of missing items or parts, items damaged in transit, or non delivery; within 20 days of purchase date or 48 hours after item receipt, whichever is sooner, you must contact us by email at info@testyourgold.com or by use of the contact form .

Any refunds on items will be issued in the same payment form as tendered at the time of purchase. Once the item is received and inspected your purchase will be refunded or a exchanged. Please allow 7-14 days for a credit to appear on your account. If the item is sent back for an exchange, please allow 3-5 business days for the replacement to be processed.

All returned or exchanged items under the Purchase Policy must be in unused condition and in their original box.

For all your gold and silver testing needs, custom orders, and additional requests please send an email to info@ testyourgold.com or use the contact form.
